Conveyor BeltsAnti-Abrasion

  • The carcass construction and cover quality of these belts are noted for their reliability and long life in all industrial applications either for general purposes or handling of sharp-edged and extremely abrasive materials.
MAKE YOUR INQUERY ABOUT THIS PRODUCT

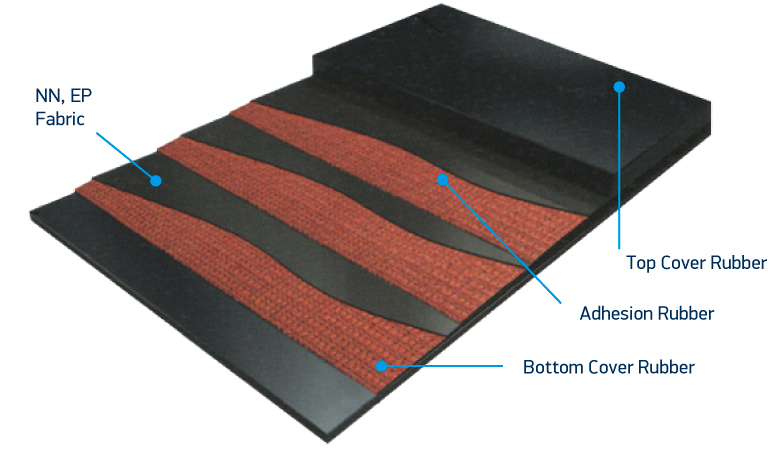

Our renowned multy-ply EP carcass (warp polyester + weft nylon). Special rubber layer with good fabric adhesion properties (skimmed layer). High abrasion resistant cover quality for heavy duty application or special quality of cover on request.

  • Highly flexible.
  • Highly resistant against impact.
  • Highly bendable.
  • Less elongation.
  • Less deformed by heat.
  • Less affected by moisture
  • Sand, gravel, stone industry
  • Cement, concrete plants
  • Heating and power stations , garbage incineration plants
  • Road construction machinery
  • Recycling, compost industry, mineral processing plants
  • Timber industry and sawmills
  • Slag conveyors
  • REA-gypsum
  • Broken glass
  • Silica sand or materials containing silica sand
  • Ascending conveyors with slipping type of material
  • Clay
We strongly recommend, for an optimal visualization of the details of this table, to view it on a larger screen.
Show TYPE OF COVER table on this screen
Hide TYPE OF COVER table
  • AB
  • EA
  • EAS
  • EAH
  • EAL
  • EALS
  • APPLICATION
  • High abrasion resistant cover for general purpose
  • High abrasion resistant cover for heavy duty application
  • High abrasion resistant cover for extraordinary abrasive materials
  • For conveying extraordinary abrasive and extremely sharp materials
  • For conveying extraordinary abrasive materials or wear due to belt cleaning (REA - gypsum)
  • For conveying extremely abrasive materials
  • ABRASION
  • < 150 mm3
  • < 120 mm3
  • < 90 mm3
  • < 90 mm3
  • < 55 mm3
  • < 35 mm3
  • HARDNESS
  • 60 +/- 5 Sh°A
  • 65 +/- 5 Sh°A
  • 62 +/- 5 Sh°A
  • 75 +/- 5 Sh°A
  • 62 +/- 5 Sh°A
  • 62 +/- 5 h°A
  • AMBIENT TEMPERATURE
  • -50°C … +60°C
  • -50°C … +60°C
  • -50°C … +60°C
  • -50°C … +60°C
  • -50°C … +60°C
  • -50°C … +60°C
We strongly recommend, for an optimal visualization of the details of this table, to view it on a larger screen.
Show INTERNATIONAL COVER RUBBER STANDARD table on this screen
Hide INTERNATIONAL COVER RUBBER STANDARD table
  • Standard
  • Rubber Grade
  • Tensile Strength (N/mm)
  • Breaking Elongation (% min.)
  • Abrasion (mm3 max.)
  • DIN GERMANY
  • W X Y Z
  • 18 25 20 15
  • 400 450 400 350
  • 90 120 150 250
  • ISO INTERNATIONAL
  • H D L
  • 24 18 15
  • 450 400 350
  • 120 100 200
  • AS AUSTRALIA
  • A E F M N S
  • 173 143 143 245 173 143
  • 400 300 300 450 450 300
  • 70 - - 125 200 250
  • RMA AMERICA
  • GRADE 1 GRADE 2
  • 176 141
  • 400 400
  • 200 250
