Conveyor BeltsPipe

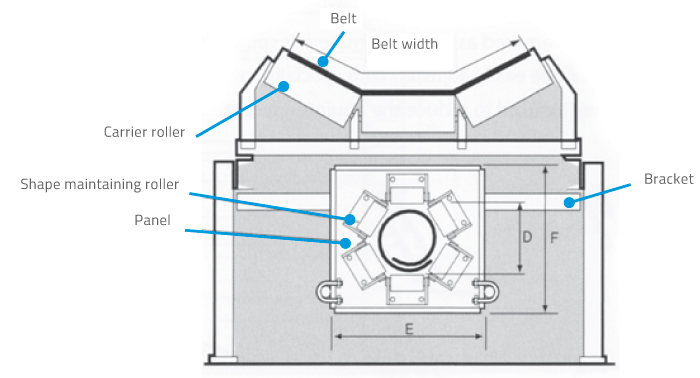

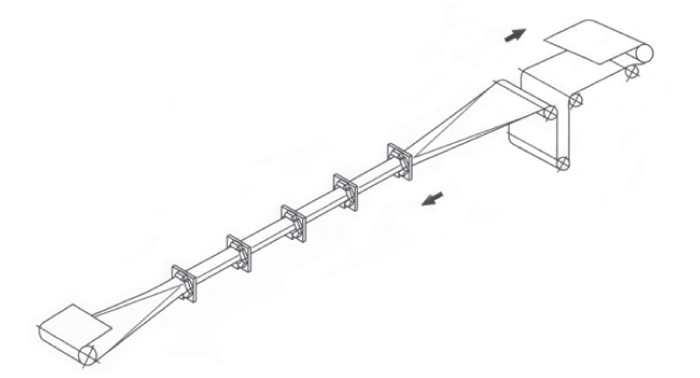

  • The Pipe Conveyor Belt is suitable for use in tougher conditions and requires application of special tubular-type conveyors. Due to its special carcass construction the belt runs like a tube which opens only when loaded and unloaded. The system remains closed and dust-tight even when bulk solids are conveyed in horizontal or vertical curves.
MAKE YOUR INQUERY ABOUT THIS PRODUCT
  • Prevents transport materials from flying, spilling or mixing with foreign substances as transported in a sealed pipe.
  • Consumes less energy than ordinary conveyor lines.
  • 3-dimension layouts are available with openings at top, bottom, left or right.
  • Allows for maximum 30 degree incline transport, much steeper than ordinary conveyor belts.
  • Occupies minimum installation space.
  • Generates much less noise than ordinary conveyor lines.
  • Cement and concrete plants
  • REA - or gypsum plants
  • Lime industry
  • Tunnel construction
  • Conveying dusty and fine-grained material
  • Material of lower density and environmentally hazardous material
  • Silo conveyors
  • Conveyors crossing roads (bridge conveyors)
  • Heating stations, power stations, garbage incinerating plants
We strongly recommend, for an optimal visualization of the details of this table, to view it on a larger screen.
Show SPECIFICATIONS AND CONVEYING EFFICIENC table on this screen
Hide SPECIFICATIONS AND CONVEYING EFFICIENC table
  • Inner pipe diameter (mm)
  • Loading area (m2)
  • Conveying speed (m/mm)
  • Conveying volume (m3/Hr)
  • 150
  • 0.013
  • 120
  • 95
  • 200
  • 0.024
  • 130
  • 184
  • 250
  • 0.037
  • 140
  • 309
  • 300
  • 0.053
  • 150
  • 477
  • 350
  • 0.072
  • 175
  • 758
  • 400
  • 0.094
  • 200
  • 1131
  • 500
  • 0.147
  • 225
  • 1988
  • 600
  • 0.212
  • 250
  • 2875
  • 700
  • 0.289
  • 275
  • 3931
  • 800
  • 0.377
  • 300
  • 5157
We strongly recommend, for an optimal visualization of the details of this table, to view it on a larger screen.
Show STANDARD SPECIFICATIONS (MULTI PLY) WITH RUBBER COVER table on this screen
Hide STANDARD SPECIFICATIONS (MULTI PLY) WITH RUBBER COVER table
  • Pipe diameter (mm)
  • Belt width
    • Standard strength (kN/m)
    • 200
    • 315
    • 500
    • 630
    • 800
  • 150
  • 600
  • 3.0 x 2.0 3.0 x 2.0 - - -
  • 200
  • 780
  • 3.0 x 2.0 /5.0 x 2.0 3.0 x 2.0 /5.0 x 2.0 3.0 x 2.0 /5.0 x 2.0 - -
  • 250
  • 950
  • - 3.0 x 2.0 /5.0 x 2.0 3.0 x 2.0 /5.0 x 2.0 3.0 x 2.0 /5.0 x 2.0 -
  • 300
  • 1100
  • - 3.0 x 2.0 /5.0 x 2.0 3.0 x 2.0 /5.0 x 2.0 3.0 x 2.0 /5.0 x 2.0 -
  • 350
  • 1300
  • - - 3.0 x 2.0 /5.0 x 2.0 5.0 x 2.0 5.0 x 2.0
  • 400
  • 1500
  • - - - 5.0 x 2.0 5.0 x 2.0
  • 500
  • 1850
  • - - - 5.0 x 2.0 5.0 x 2.0
