Conveyor BeltsSide Wall

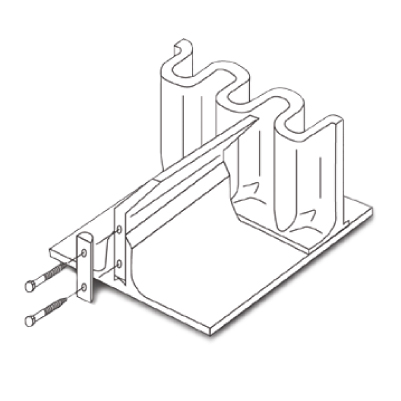

  • Conveyor belts equipped with special walls and cleats.
MAKE YOUR INQUERY ABOUT THIS PRODUCT
  • Corrugated sidewall design allows greater transport volume with increased sectional loading area, enabling a narrower conveyor design.
  • Reduces foot space as steep incline or vertical transport is possible with pin hooks attached belt widthwise.
  • No skirt board is required as transport materials spillage is prevented by high wavelike raised strips.
  • Incline angle can be easily adjusted with specially strong belts and press rollers.
  • Flat rollers may be used to reduce the equipment cost
  • Automotive
  • Mining
  • Foundries
  • Power plants
  • Recycling industry
  • Sand and gravel industry
  • Stone quarries
We strongly recommend, for an optimal visualization of the details of this table, to view it on a larger screen.
Show COMPONENTS table on this screen
Hide COMPONENTS table
  • WALLS
  • CLEATS
  • Height
  • 1"
    25 mm
    1.5"
    38 mm
    2"
    51 mm
  • 2.5"
    64 mm
    3"
    75 mm
    4"
    102 mm
    5"
    127 mm
  • 6"
    152 mm
    8"
    203 mm
    10"
    254 mm
  • 12"
    305 mm
    16"
    405 mm
  • Height
  • 0.5"
    13 mm
    1"
    25 mm
    1.5"
    38 mm
  • 2"
    51 mm
    2.5"
    64 mm
    3.5"
    89 mm
    4.5"
    114 mm
  • 5.5"
    140 mm
    7.5"
    190 mm
    9.5"
    241 mm
  • 11.25"
    285 mm
    15.25"
    387 mm
  • Height
  • - 1"
    25 mm
    1.5"
    38 mm
  • 2"
    51 mm
    2.5"
    64 mm
    3.5"
    89 mm
    4.5"
    114 mm
  • - - -
  • - -
  • Height
  • - - -
  • - - - 4.5"
    114 mm
  • 5.5"
    140 mm
    7.5"
    190 mm
    9.5"
    241 mm
  • 11.25"
    285 mm
    15.25"
    387 mm
Any intermetiate size side wall or cleat is available upon request.
We strongly recommend, for an optimal visualization of the details of this table, to view it on a larger screen.
Show SPECIFICATIONS table on this screen
Hide SPECIFICATIONS table
  • Capas
  • Tension PIW
  • Rating N/mm
  • Covers**
  • BWX 1522
  • 4
  • 150
  • 265
  • White FDA 1/16" (1.6 mm) X Bare
    EA 5/64" (2 mm) X 1/16" (1.6 mm)
  • BWX 2222
  • 4
  • 220
  • 385
  • 1/8" (3.2 mm) X 1/16" (1.6 mm)
  • BWX 3332
  • 5
  • 330
  • 580
  • 1/8" (3.2 mm) X 1/16" (1.6 mm)
  • BWX 4442
  • 6
  • 440
  • 775
  • 1/8" (3.2 mm) X 1/16" (1.6 mm)
  • BWX 5552
  • 7
  • 550
  • 970
  • 1/8" (3.2 mm) X 1/16" (1.6 mm)
  • Higher tension available upon request.
**Heat Resistant Covers - 3/16" x 1/16" / Special covers available upon request
