Conveyor BeltsMono Ply

  • It is developed in order to withstand the toughest use conveying large quality of material.
  • Mono Ply have excellent resistance to flexural fatigue, shocks and impacts with outstanding troughability.
MAKE YOUR INQUERY ABOUT THIS PRODUCT
  • One-ply carcass provides over 2000kN/m tension.
  • Low elongation allows short take-up strokes.

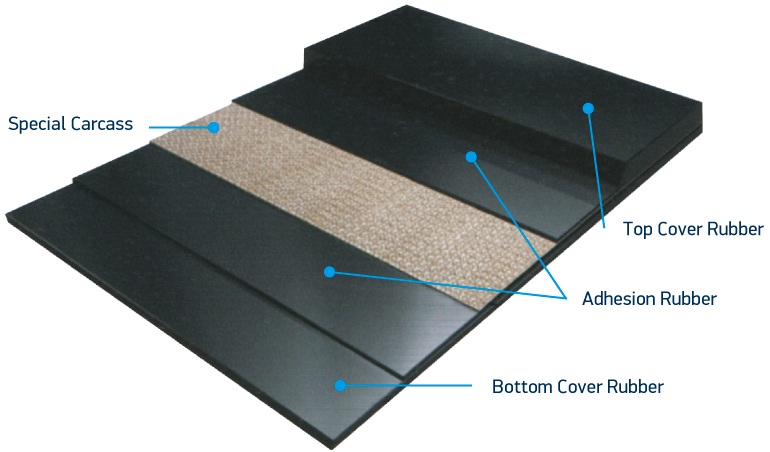

  • Single layer carcass structure provides optimum troughing.
  • Single layer carcass structure provides high bendability, allowing small-diameter pulleys.
  • High bendability, impact-resistance, and thin carcass allow thick cover rubber layers, extending belt life span.

Carcass straight warp fabric for high tensile strenght.

We strongly recommend, for an optimal visualization of the details of this table, to view it on a larger screen.
Show MONO PLY FABRIC GRADE table on this screen
Hide MONO PLY FABRIC GRADE table
  • GRADE
  • TENSILE STRENGTH (N/mm)
  • WORKING TENSION RATING (N/mm)
  • 10% STRETCH (%)
  • APPROX. CARCASS THICKNESS (mm)
  • SW 400
  • Min. 400
  • 40
  • Max. 1.01
  • 2.0 - 2.3
  • SW 500
  • Min. 500
  • 50
  • Max. 1.01
  • 2.3 - 2.4
  • SW 630
  • Min. 630
  • 63
  • Max. 1.01
  • 2.5 - 2.8
  • SW 800
  • Min. 800
  • 80
  • Max. 1.01
  • 2.9 - 3.0
  • SW 1000
  • Min. 1000
  • 100
  • Max. 1.0
  • 3.5 - 3.8
  • SW 1250
  • Min. 1250
  • 125
  • Max. 1.0
  • 4.0 - 4.1
  • SW 1400
  • Min. 1400
  • 140
  • Max. 1.0
  • 4.1 - 4.2
  • SW 1600
  • Min. 1600
  • 160
  • Max. 1.0
  • 5.0 - 5.1
  • SW 1800
  • Min. 1800
  • 180
  • Max. 1.0
  • 5.3 - 5.4
  • SW 2000
  • Min. 2000
  • 200
  • Max. 1.0
  • 5.7
We strongly recommend, for an optimal visualization of the details of this table, to view it on a larger screen.
Show TECHNICAL DATA table on this screen
Hide TECHNICAL DATA table
  • GRADE
  • SW 400
  • SW 500
  • SW 630
  • SW 800
  • SW 1000
  • SW 1250
  • SW 1400
  • NUMBER OF PLIES
  • 1
  • 1
  • 1
  • 1
  • 1
  • 1
  • 1
  • Allowable Working Tension Vulcanized Fastened Kg/cm
    Ib/inch
    Kg/cm
    Ib/inch
  • 40 225 36 200
  • 50 280 45 250
  • 63 350 56 310
  • 80 445 72 400
  • 100 560 90 500
  • 125 700 112 620
  • 140 780 126 700
  • Min. Width for Troughing Empty 35º Idlers
  • 20”
  • 20”
  • 24”
  • 24”
  • 30”
  • 30”
  • 36”
  • Min. Pulley Diameter Head & Drive Tail & Take-up Bend & Snubs
  • 14” 12” 10”
  • 16” 13” 12”
  • 16” 13” 12”
  • 18” 14” 14”
  • 20” 16” 14”
  • 22” 18” 16”
  • 24” 20” 18”
